INTERNAL GEAR HUBS
INTERNAL GEAR HUBS
A wide range, compact design, high torque capacity, adjusted-for-life shifting, and other features make Kindernay the perfect gear solution for all kinds of bikes and e-bikes

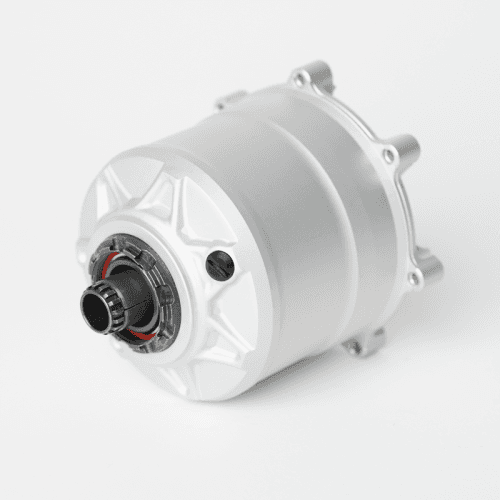

KINDERNAY VII WIDE LINE
7 speeds
SPECIFICATIONS
- 7 speeds internal gear hub
- 428% range with 28% even steps
- 148/12mm native thru-axle support
- 160Nm crank input torque capacity
- Universal torque arm assembly (incl. post mount torque anchor)
- 1,28kg gear hub (1,78kg for the complete system, incl. gear hub, SWAP cage, HYSEQ shifter unit)
COMPATIBILITY
- HYSEQ hydraulic shifters
- SWAP cages
- Axle standard: 148x12
- Integrated torque arm assembly (torque arm anchor in the frame – OEM only solution)
- 6 bolt IS rotor interface
- 9 spline HG compatible sprocket mount for chain and Gates belt
- Belt / Chain line
- 48,7mm belt line with Gates HMN Sprocket
- 51,7mm with custom Gates SMN Sprocket
- 51,9 to 53,3mm chain line
- Tire clearance up to 3 inches with belt drive
KINDERNAY VII
7 speeds
SPECIFICATIONS
- 7 speeds internal gear hub
- 428% range with 28% even steps
- 12mm native thru-axle support
- 160Nm crank input torque capacity
- Universal torque arm assembly (incl. post mount torque anchor)
- Supporting 148x12, 142x12, 135x10
- 1,26kg gear hub (1,76kg for the complete system, incl. gear hub, SWAP cage, HYSEQ shifter unit)
COMPATIBILITY
- HYSEQ hydraulic shifters
- SWAP cages
- Match Cap system : Compatible with 148x12, 142x12, 135x10
- Integrated torque arm assembly (torque arm anchor in the frame – OEM only solution)
- 6 bolt IS rotor interface
- 9 spline HG compatible sprocket mount for chain and Gates belt
- Belt /Chain line
- 45,5mm belt line with Gates HMN Sprocket
- Chain line 48mm
KINDERNAY XIV
14 speeds
SPECIFICATIONS
- 14 speeds internal gear hub
- 543% range with 13,9% even steps
- 12mm native thru-axle support
- 160Nm crank input torque capacity
- Proprietary 7-bolts high performance discc brake rotor
- Universal torque arm assembly (incl. post mount torque anchor)
- 1,46kg gear hub (1,96kg for the complete system, incl. gear hub, SWAP cage, HYSEQ shifter unit)
COMPATIBILITY
- HYSEQ hydraulic shifters
- SWAP cages
- Match CAp system : Compatible with 148×12, 142×12, 135×10
- 9 spline HG compatible sprocket mount for chain and belt
- Belt /Chain line
- 45,5mm belt line with Gates HMN Sprocket
- Chain line 48mm
DISCOVER MORE PRODUCTS
SWAP CAGES
The flexible SWAP hub flange allows separation of the wheel from the internal gear hub. Wheel rims are laced to SWAP cages rather than directly to the hubs, allowing quick assembly and changes between wheels, without the need to purchase a new gear hub for each new wheel. Kindernay SWAP shells have a unique cut-out design for optimal combination of light weight, tension-absorption, and high strength performance.
